Wednesday, 5 June 2013

Using ASP.NET MVC 4.0 in TeamMentor (with simple Controller, View and master Layout)

On TeamMentor's 3.3. release we added support for C# RazorEngine and System.Web.Razor.

For 3.4 release, there is requirement to add Markdown support (see next post). Since the API that I want to use (MarkdownDeep) works really well with ASP.NET MVC 4.0, here is how I added ASP.NET MVC 4.0 support to TeamMentor.

The process was quite smooth, and I was able to quickly get it up and running.

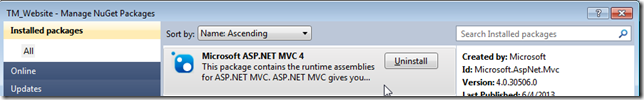

It all started with NuGet where I added this package

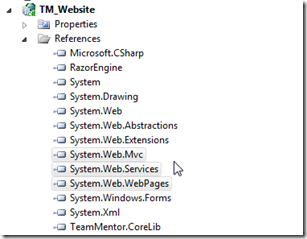

Which (after Resharper optimization) results in two MVC dependencies (System.Web.MVC and System.Web.WebPages)


UPDATE: Azure required a couple more MVC dependencies

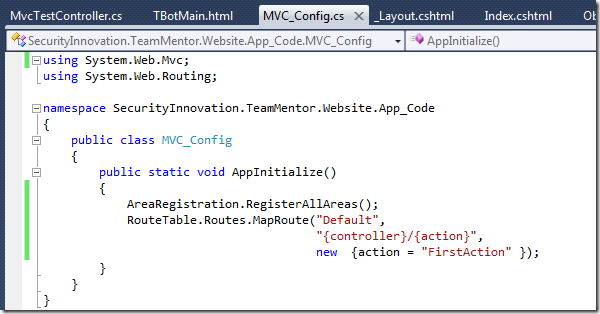

Since one of my objectives in adding this library is to not touch the TeamMentor.CoreLib assembly (which is where the global.asax.cs file is), I used the Asp.Net App_Code AppInitialize non-documented featured (invoked before Application_Start) technique to register the main Routes on an file called MCV_Config.cs added to the App_Code folder:

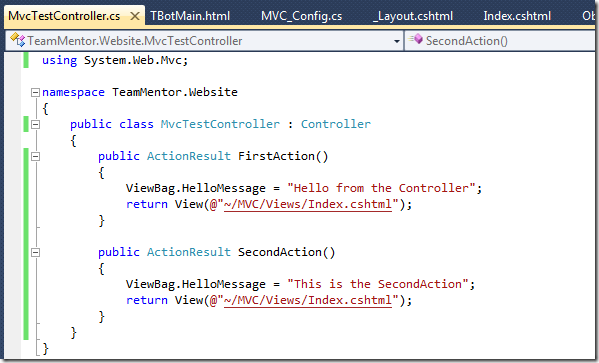

I then added a MvcTestController.cs file with a controller class with two methods

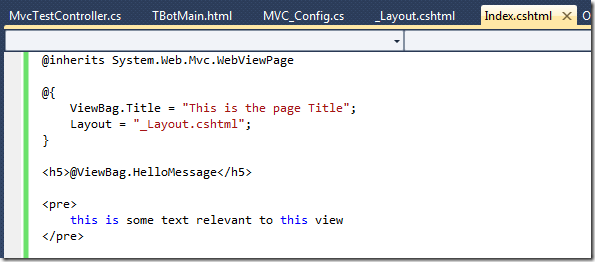

... and a view called Index.cshtml (located in the /Mvc/Views/* folder instead of the default /Views/MvcTest/* folder)

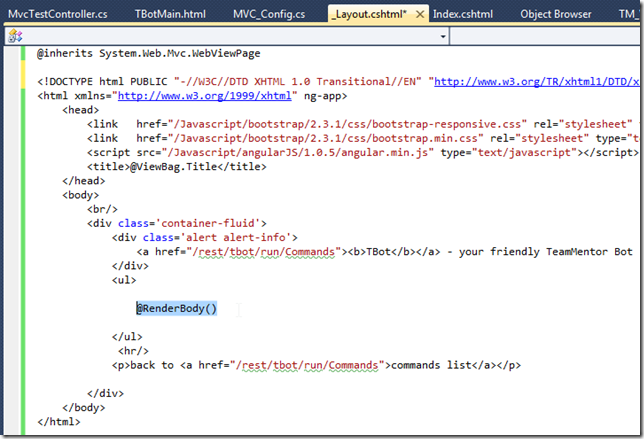

... and a master view called _layout.cshtml (referenced from the Index.cshtml razor file shown above)


... and that is it :)

The _layout.cshtml file is basically the AngularJS main page used by TBot, with all the ASP.NET MVC interaction happening with the @RenderBody command (shown above)

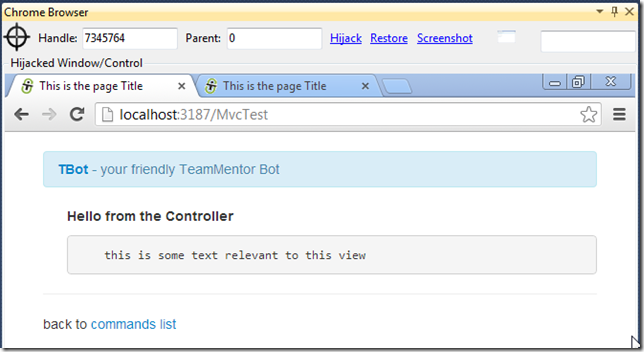

After compiling the project, here is what the http://localhost:3187/MvcTest looks like (in Chrome inside VisualStudio)

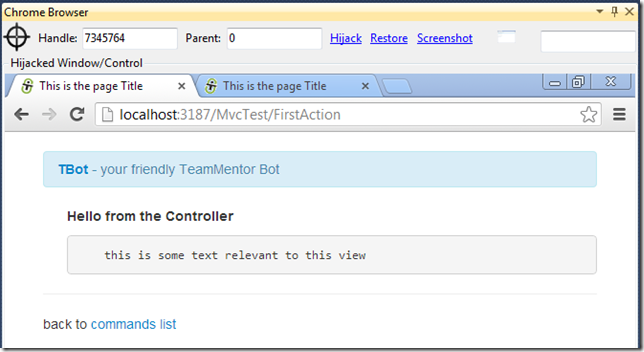

We can also access the same page on http://localhost:3187/MvcTest/FirstAction

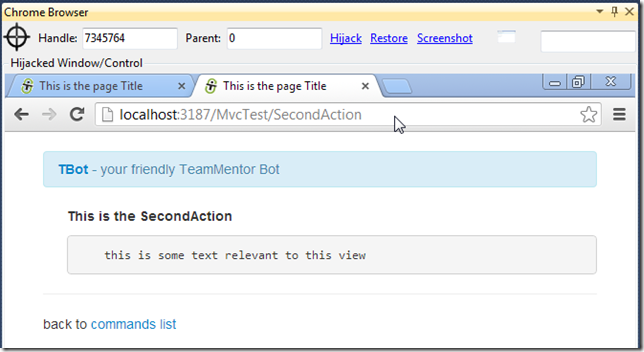

And open the other controller method at  http://localhost:3187/MvcTest/SecondAction
