Testing an WCF Rest Service directly and via a local instance created by WebServiceHost

Here is an example of a simple REST based WebService which is tested using 3 techniques:

  • IIS
  • Direct object creation
  • Locally hosted instance of the WCF service (using .Net's WebServiceHost class)


It all starts with an Interface definition:

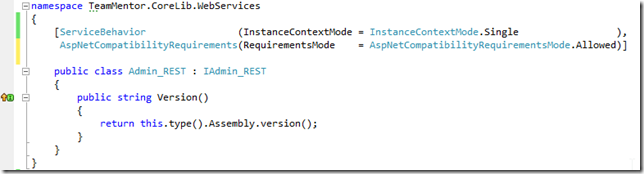

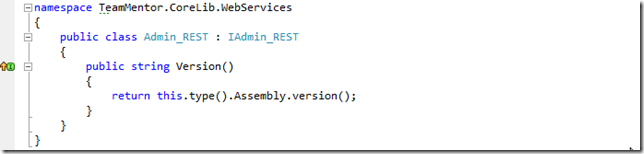

Which is implemented by


Testing Version method using IIS/Cassini

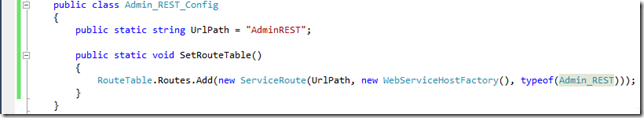

To access this Service in IIS/Cassini, we call the SetRouteTable method from the Global.asax.cs Application_Start callback:


Which sets the AdminRest as the route (i.e. url path) into the Admin_REST service

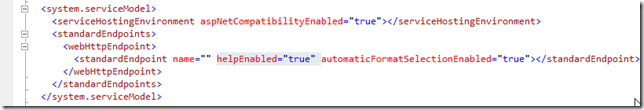

Since we have the help pages enabled (on web.config)

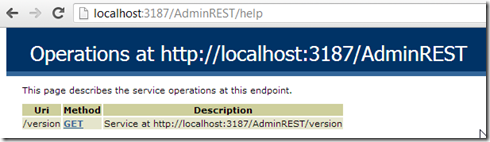

We can view a wsdl-type-helper page at http://localhost:3187/AdminREST/help

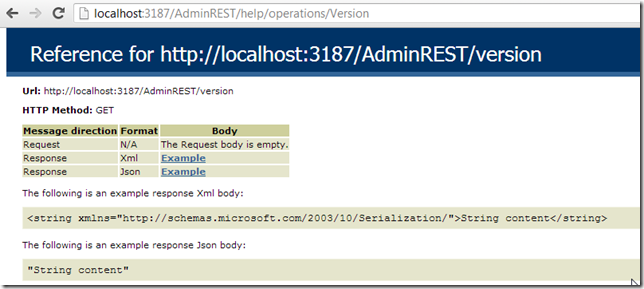

And invoke the Version method using http://localhost:3187/AdminREST/Version



Testing Version method directly

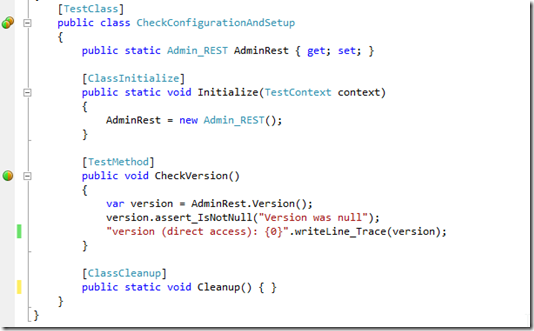

Inside a VisualStudio 2010 Test Project: image lets add a test that creates an instance of the AdminRest class and invokes it directly (note that this technique will not work for tests that require live (or configured) Asp.NET Http objects)

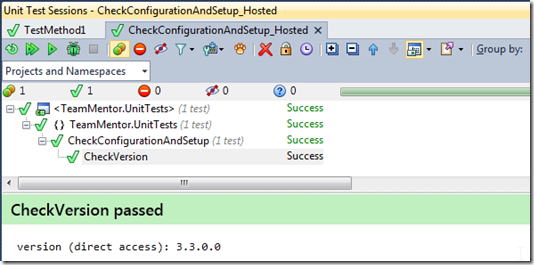

When executed image the UnitTest should succeed and show the version number in its Output window:



Testing Version method using a WCF Host

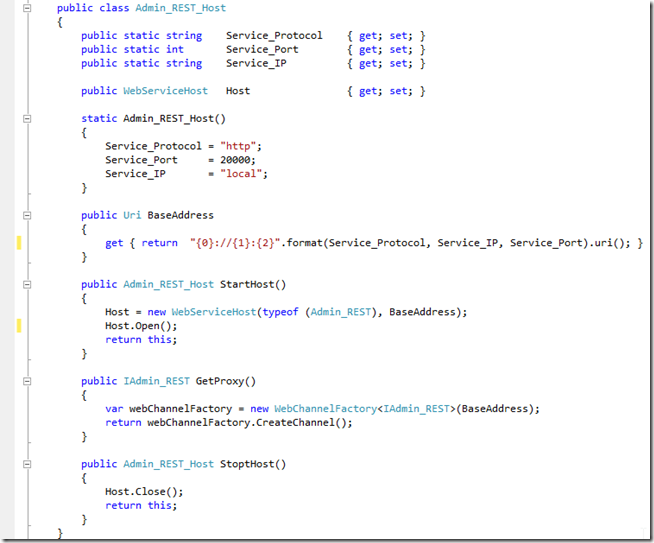

A more interesting/powerful technique to host the WCF service temporarily on a local port, and access the service via HTTP.

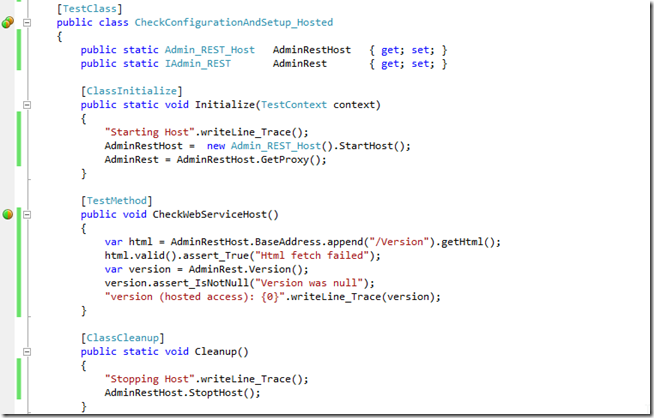

The code above is used by this Unit Test that opens and closes the WCF port during its execution:

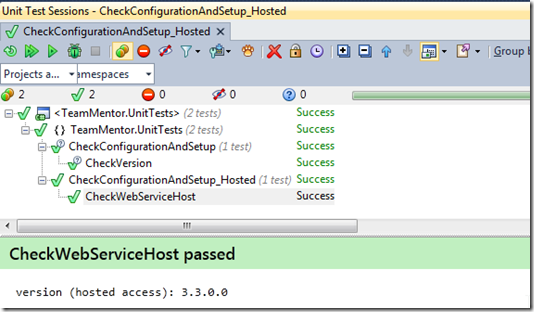

Here is the output of the the CheckWebServicesHost test:

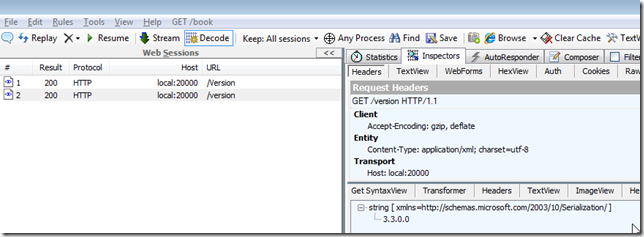

To make this work (and to help debugging) I added/used the DNS entry local (instead of localhost) , which allowed me to view the WCF traffic in Fiddler:

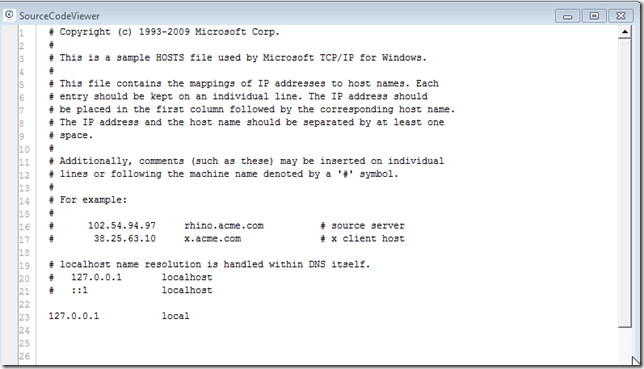

Note that the local DNS mapping needs to defined in the system32/etc/hosts file:


Another change that I had to do, was to give my current user account, the ability to bind to the 20000 port.

This was done using the HttpNamespaceManager.zip tool available from the AddressAccessDeniedException: HTTP could not register URL http://+:8080/<…> MSDN Article.


image image

Here are couple posts that explain why this last step was required:
