Dinis Cruz Blog: Installing Eclipse Plugin Builder, accessing Eclipse objects and adding a new Menu Item that opens Owasp.org website

This post shows how to use the Eclipse Plugin Update site described in TeamMentor Plugin and Builder v1.5.6 (Source Code and Eclipse Update site) to install and use the Eclipse Builder Kit that we open sourced last week.

The objective is to do these actions, without needing to start Eclipse to see them:

Dynamically access eclipse objects like: Shell, Workbench, Worksapce, ActiveWorkbenchPage, Display, etc...
Open the http://www.owasp.org website in a browser (and put it inside an Action object)
Add new Menu called ‘OWASP’
Add a menu Item to the ‘OWASP’ menu called ‘Open OWASP website’ that calls the Action object that opens wht OWASP website.

Step 1: Install the TeamMentor Plugin version 1.5.6 in Kepler

In a default install of Kepler (this should also work in versions 3.7 (Indigo) and 4.2 (Juno))

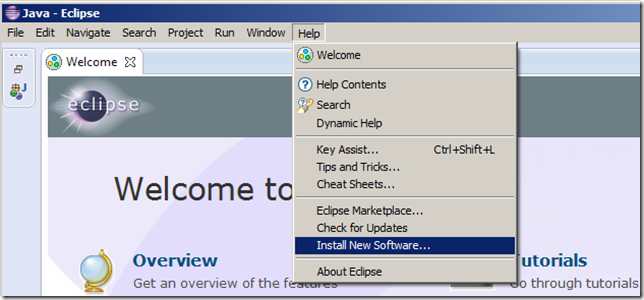

…open the Install New Software… menu option:

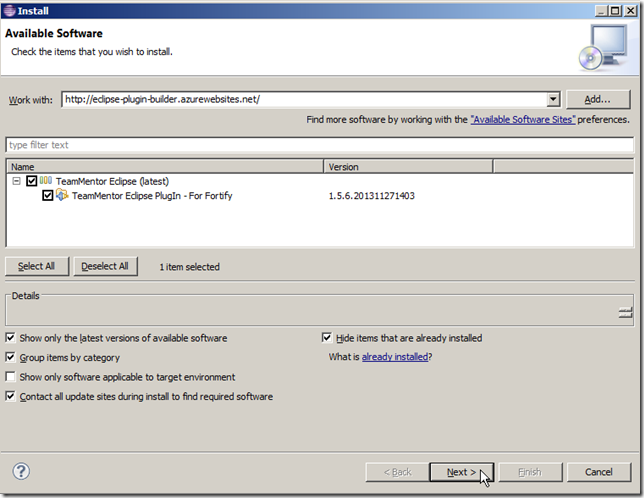

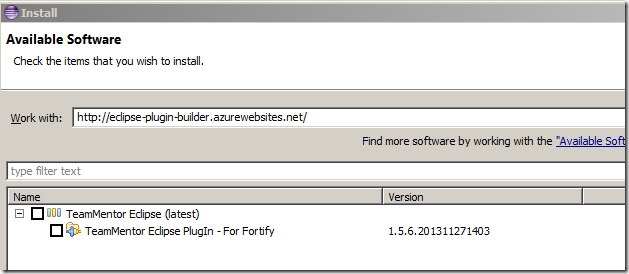

…enter the value http://eclipse-plugin-builder.azurewebsites.net the Work with: Textbox

…select the TeamMentor Eclipse PlugIn – For Fortify option and click Next

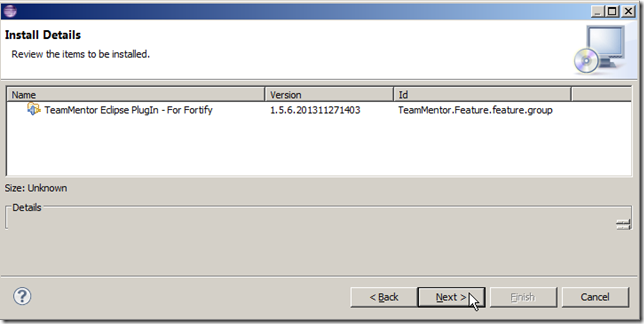

… click Next:

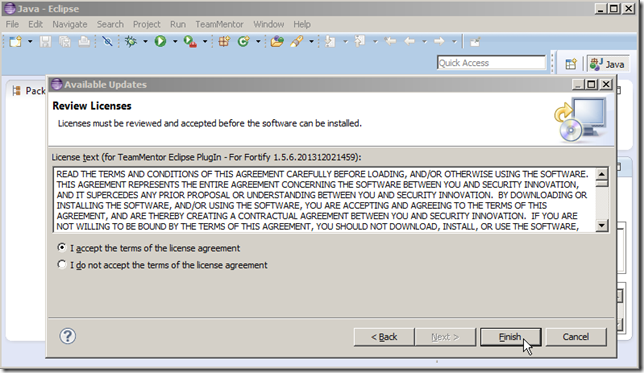

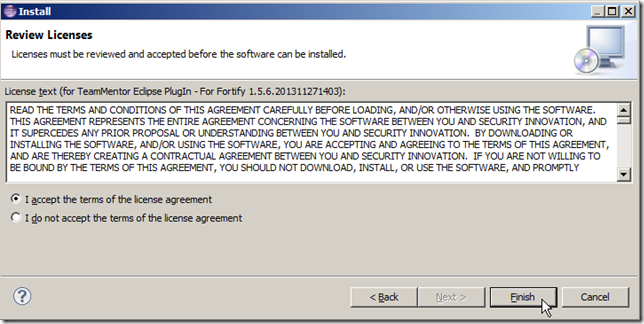

… accept the terms and click Finish:

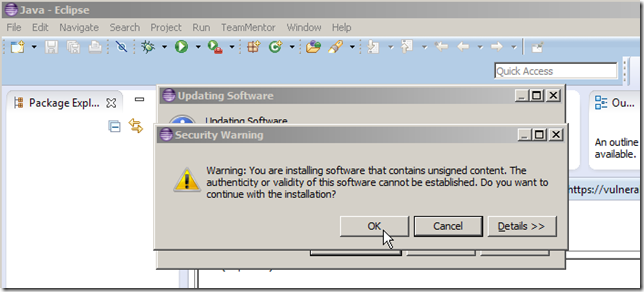

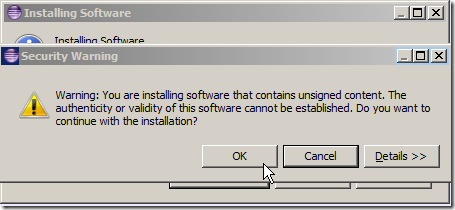

… click OK on the unsigned warning (this will be addressed on the final build)

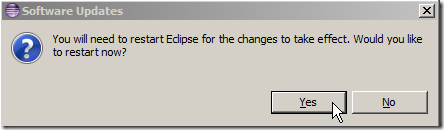

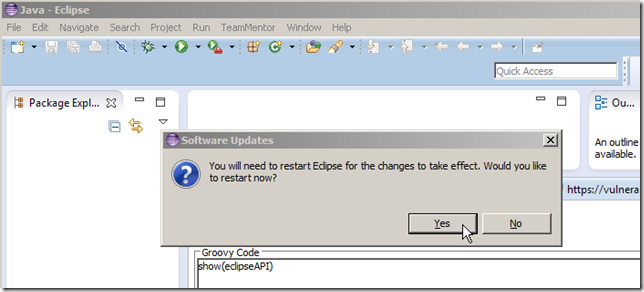

… and finally click Yes to reboot:

Step 2: Enable script support and write a ‘Hello World’ script

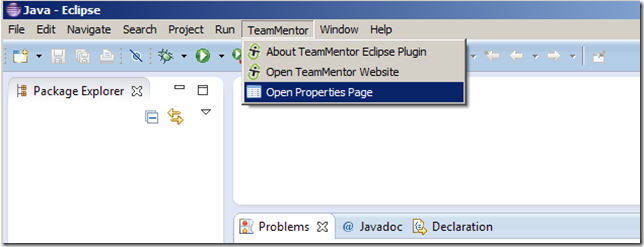

Once Eclipse starts, you should see a TeamMentor menu, where you need to click on the Open Properties Page menu item

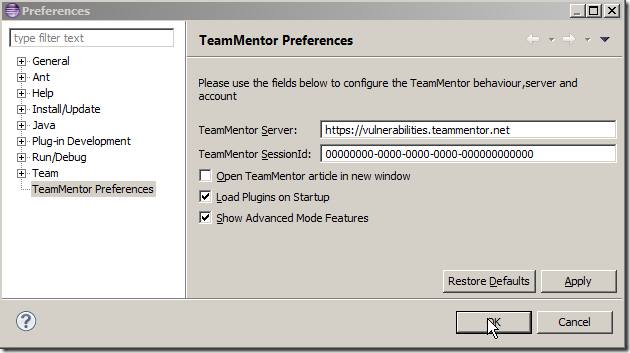

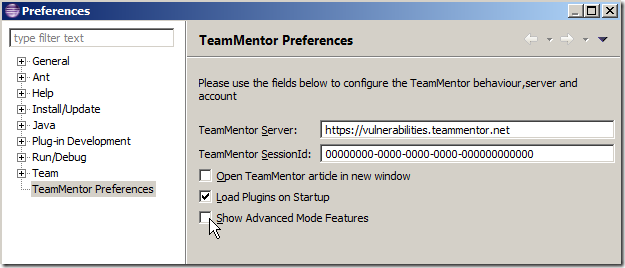

… select the Show Advanced Mode Features checkbox:

… click OK

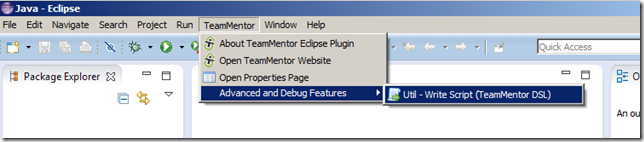

… and open the Util – Write Script (TeamMentor DSL) menu item from the (new) Advanced and Debug Features menu

NOTE: if you are running this on Indigo, you will need to restart Eclipse since menu visibility is not loaded dynamically (as it is in Kepler). I’m sure there is a way to force its refresh, so if you know about it, let me know.

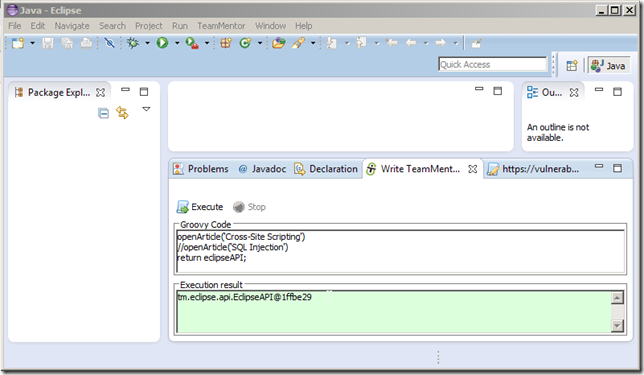

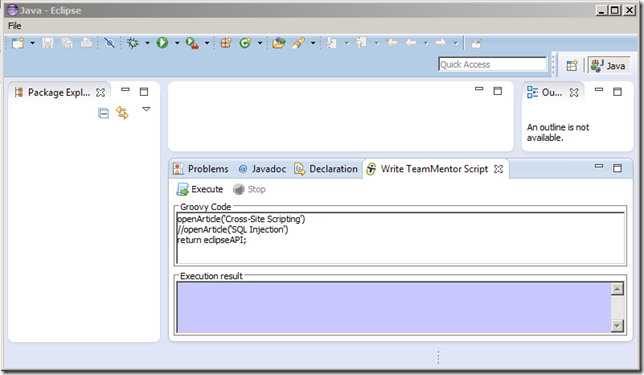

The scripting UI should look like this:

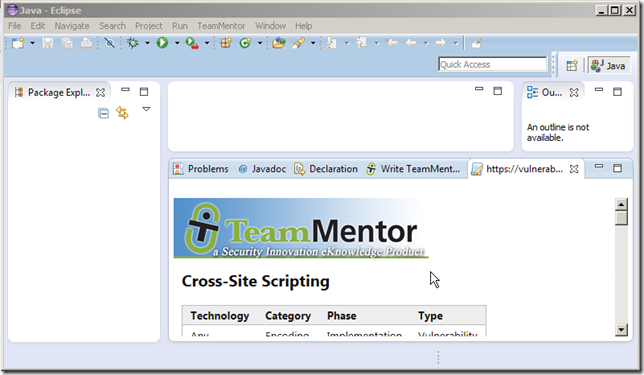

… where if you click on Execute you should see of one of TeamMentor’s article showing up in a browser window

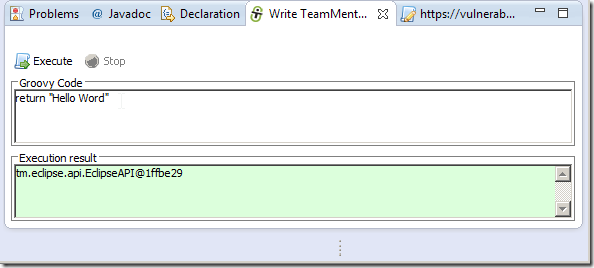

… and an eclipse object string representation (in this case tm.eclipse.api.EclipseAPI@1ffbe29) in the script UI’s Execution result panel

To create the first Hello World example, replace the text inside the Groovy Code panel with:

… and click on Execute to see the Hello World in the Execution result panel

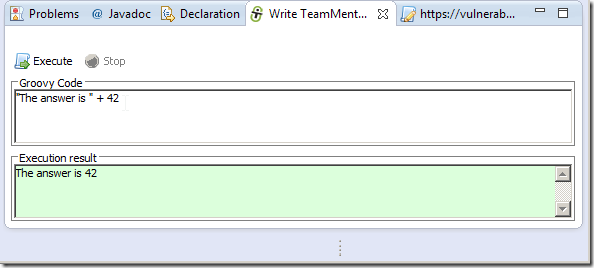

Note that the Execution result will show the last object of the Groovy script execution, so you can just do this:

Step 3: Access Internal Eclipse objects to view/change properties values and invoke methods

What is really powerful about this scripting environment, is the fact that it is running on the Eclipse JVM, which means that it has access to all Eclipse objects in real time.

In practice, this means that we can access Eclipse objects and manipulate them right inside the Eclipse instance we are running the scripts! No more waiting 30s to see the effect of a code change or simple code test :)

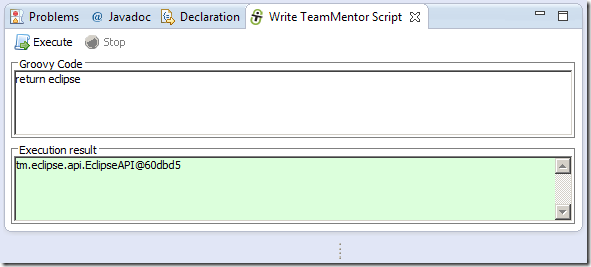

To make life/coding easier, most of the common objects one needs when programming eclipse are exposed via the EclipseApi class, which is available via the eclipse object (or the eclipseAPI object) already mapped to the current Groovy script being executed:

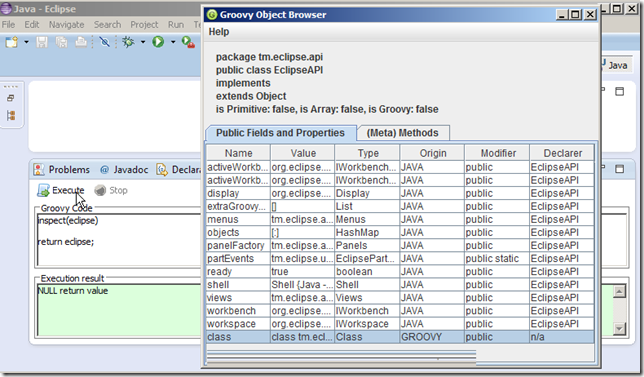

Groovy has a nice Object Viewer helper UI in the groovy.inspect.swingui.ObjectBrowser class, which is exposed as the inspect({any object}) method that can be used (see below) to view all Public Fields and Properties of the eclipse object:

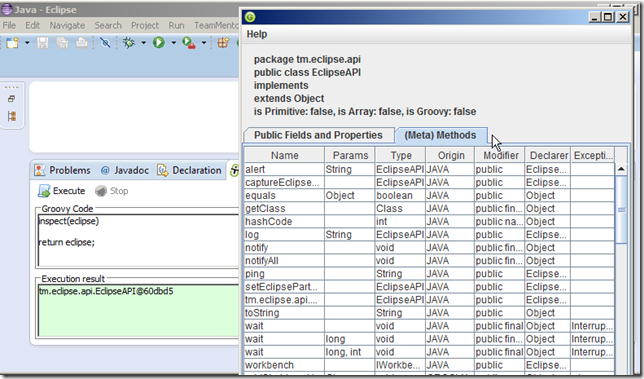

and all (Meta) Methods:

Here is a quick view of the main helper fields mapped to Eclipse objects:

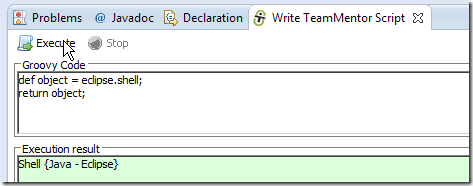

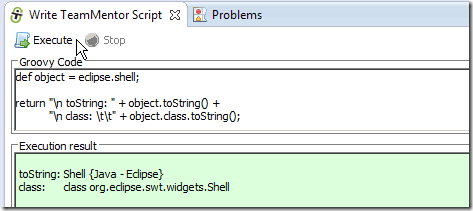

eclipse.shell

.... which is an instance of org.eclipse.swt.widgets.Shell:

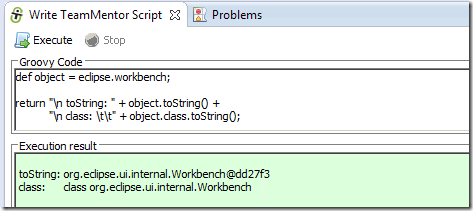

eclipse.workbench (instance of org.eclipse.ui.internal.Workbench)

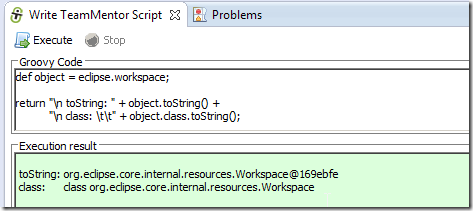

eclipse.workspace (instance of org.eclipse.ui.internal.resources.Workspace)

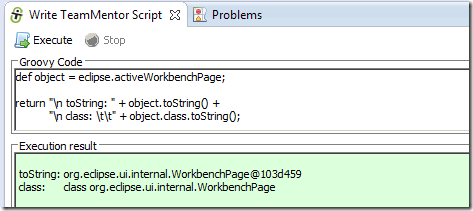

eclipse.activeWorkbenchPage (instance of org.eclipse.ui.internal.WorkbenchPage)

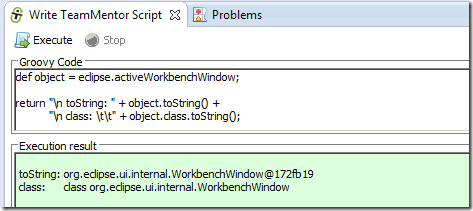

eclipse.activeWorkbenchWindow (instance of org.eclipse.ui.internal.WorkbenchWindow)

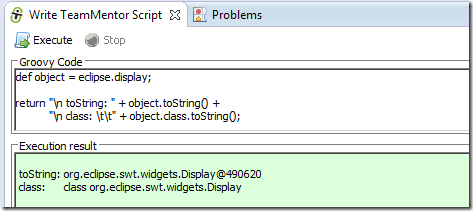

eclipse.display (instance of org.eclipse.swt.widgets.Display)

The reason why is very powerful to have access to these objects is that have real-time read/write access to its properties/fields

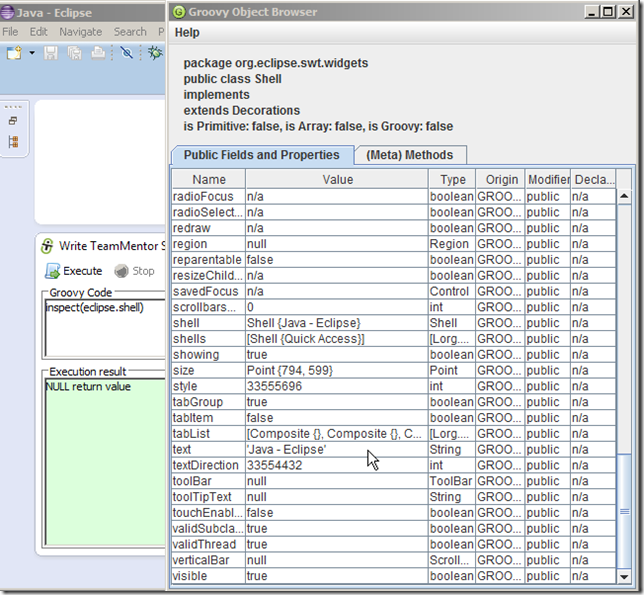

For example use inspect(eclipse.shell) to see the current Eclipse’s Shell object properties/fields:

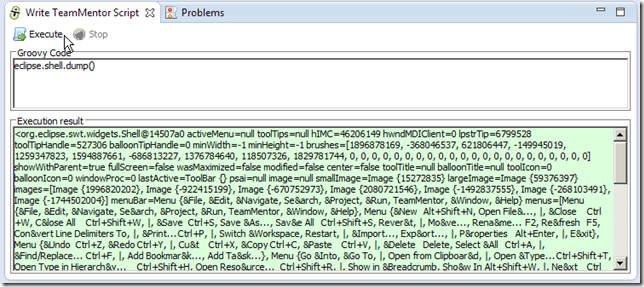

note: since we are using Groovy we can also use: eclipse.shell.dump()

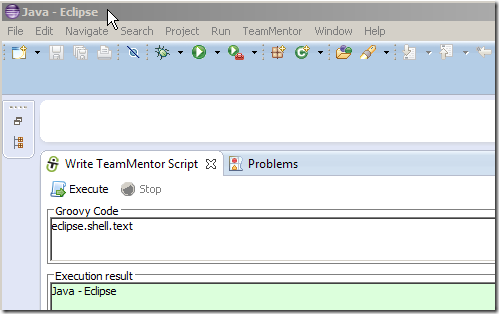

If you look at the list of the properties/fields in the eclipse.shell object, notice that there is one called text,which is the value of the current Shell window title (in the case below ‘Java – Eclipse’)

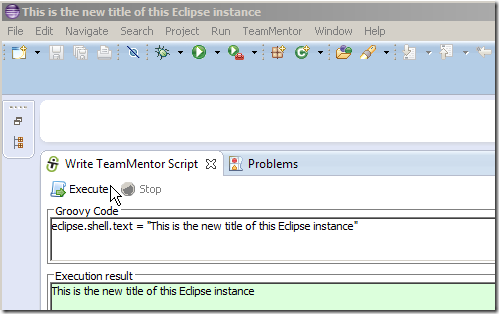

Not only we have access to this value, we can be dynamically change it:

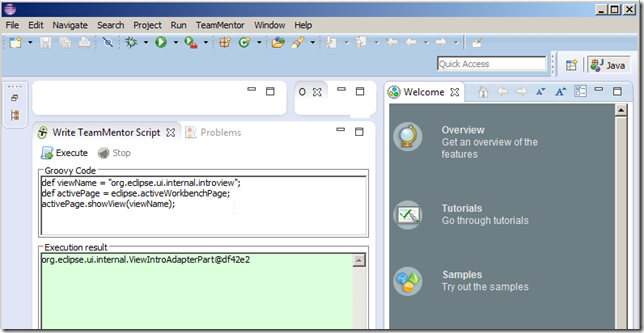

We can also easily open views like this:

.. or get a list of open views:

Step 4: Add a new Menu Item that opens OWASP.org website

Now, lets say that we want to so something more interesting like adding a new Menu Item that opened the http://www.owasp.org website.

We can start with this code snippet that will open the Eclipse internal browser:

def browserId = "Test Browser";
def website= "http://www.owasp.org";
def browser = eclipse.workbench.getBrowserSupport().createBrowser(browserId);
browser.openURL(new URL(website));

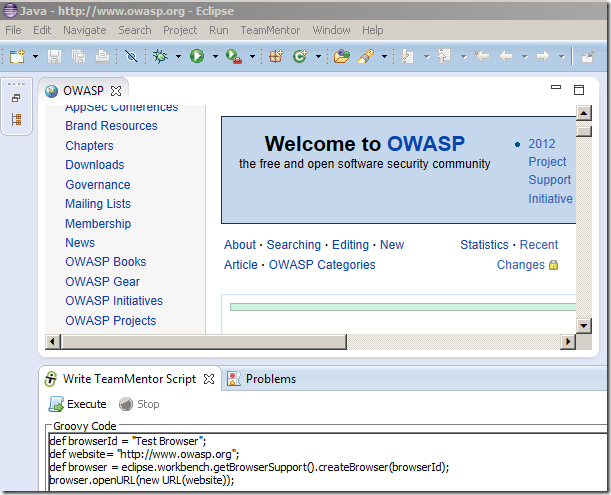

… which when executed will look like this:

Next lets move the code that opens a browser into an Action object:

import org.eclipse.jface.action.Action;
def final _eclipse = eclipse;
Action action = new Action()  {
                                 @Override
                                 public void run() {
                                                      def browserId = "Test Browser";
                                                      def website= "https://www.google.com"; //"http://www.owasp.org";
                                                      def browser = _eclipse.workbench.getBrowserSupport().createBrowser(browserId);
                                                      browser.openURL(new URL(website));
                                                   }
                             }

return action.run();

Here is the code that will create a new Menu (not visible until it has an action)

def menuName = "New Menu";
def topMenuManager      = eclipse.activeWorkbenchWindow.getMenuManager()
MenuManager newMenu = new MenuManager(menuName);
topMenuManager.prependToGroup(IWorkbenchActionConstants.MB_ADDITIONS, newMenu);

Putting the two together:

import org.eclipse.jface.action.*;
import org.eclipse.ui.IWorkbenchActionConstants;

def final _eclipse = eclipse;

def menuName = "New Menu";
def actionName = "open owasp.org";
def topMenuManager      = eclipse.activeWorkbenchWindow.getMenuManager()
MenuManager newMenu = new MenuManager(menuName);
topMenuManager.prependToGroup(IWorkbenchActionConstants.MB_ADDITIONS, newMenu);

Action action = new Action(actionName)   {
                                                    @Override
                                                    public void run() {
                                                                                    def browserId = "Test Browser";
                                                                                    def website= "http://www.owasp.org";
                                                                                    def browser = _eclipse.workbench.getBrowserSupport().createBrowser(browserId);
                                                                                    browser.openURL(new URL(website));
                                                }
                                            }


newMenu.add(action)

topMenuManager.update(true);

return topMenuManager;

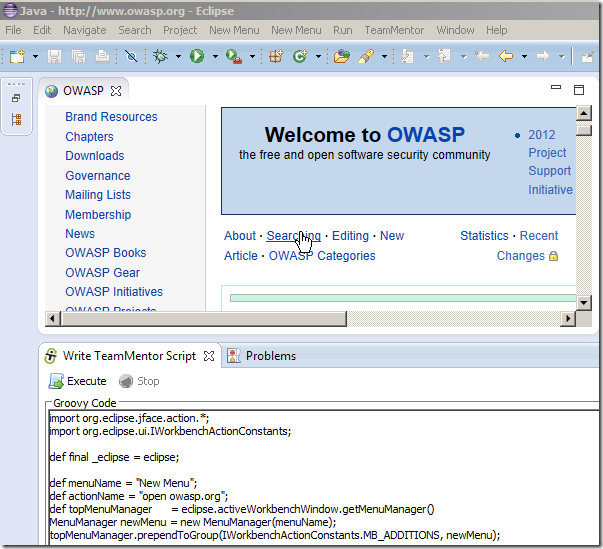

We get a new menu:

…which when selected will open an browser with https://www.owasp.org

What is really interesting in the code sample above, is how close we are to programming in pure java in normal Eclipse plugin development mode (great when learning how the API works and following the existing code sample).

But since my view in API development is to make it as easy as possible to perform the desired action, I added an helper method to the EClipseAPI to create a menu item that opens a browser window

Using the helper API, the entire code above can be replaced with:

def testMenu = eclipse.menus.add_Menu("Test Menu")
eclipse.menus.add_MenuItem_OpenWebPage(testMenu, "Open OWASP website", https://www.owasp.org)

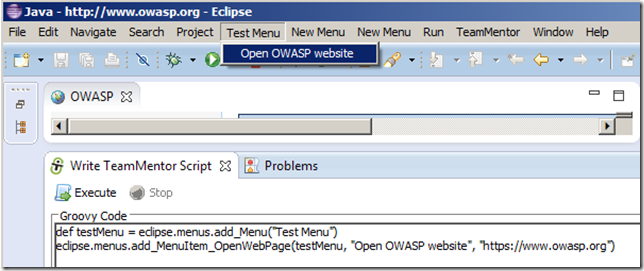

…which when executed will add the Test Menu to the top menu with a Open OWASP website menu item

Note1 : In C# I could had made that API even simpler since I could had used Extension methods to add the add_Menu_Item method to the MenuManager class

Note 2: There are a couple more helper methods which you can see at: https://github.com/TeamMentor/TeamMentor_Eclipse_Plugin/blob/develop/TeamMentor.Eclipse.PlugIn.Fortify/src/tm/eclipse/api/Menus.java

Appendix: Auto updates

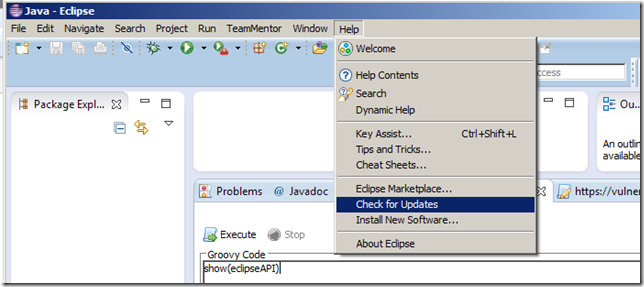

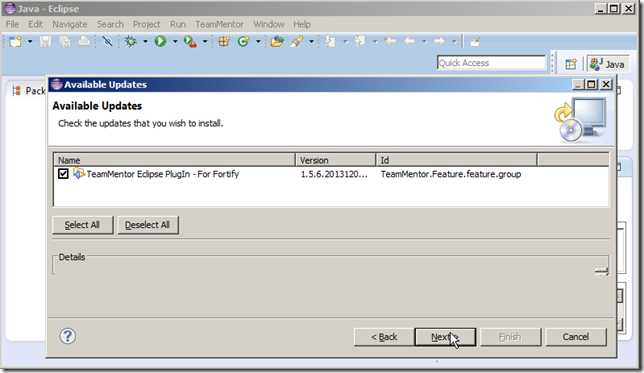

Once you can have the Plug-in installed, you can get updates via the ‘Check for Updates’ menu option (note that moment fixes are pushed as minor updates, so you might not get the latest version after the first install):
